Stainless Steel Cap & Self - Drilling / Tapping Screw Assembly Machine

Stainless Steel Cap & Self - Drilling / Tapping Screw Assembly Machine

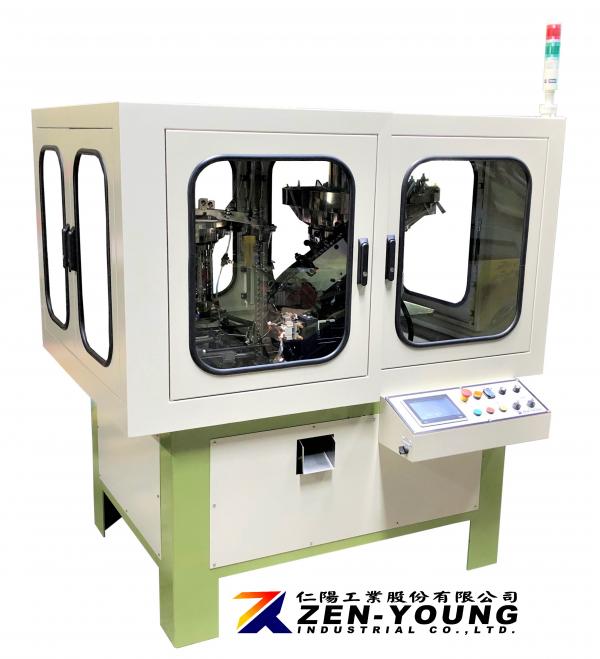

Stainless Steel Cap & Self-Drilling / Tapping Screw Assembly Machine

Product ID: ZYK





It could use with hopper(H12).

Specifications:
  • Motor power: 1HP

  • Dimension: 1,300 (L) x 1,100 (W) x 1,500 (H) mm

  • Net weight: 940 kg

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



VIDEO - SCREW 5.5X22 MM

VIDEO - CONCRETE SCREW M10X60 MM  OUTPUT : 70 PCS/MIN





Features:
  • Changing moulds to assemble different sizes of screw or cap.

  • Operating Interface Screen: Easy to operate and eliminate malfunction, one staff could operate several machines.



機 型
Model
白鐵蓋冒尺寸
ST/ST CAP

螺絲外徑
Screw Diameter

螺絲長度
Screw Length
組裝速度
Output

ZYK-75 M5、M6、OD12.7、14.7mm M5、M6、4.8、 5.5、6.3 mm 19~75 mm 70~100 PCS/MIN



Order Information:
  • Minimum Order: 1 set
  • Branded Product
