Product

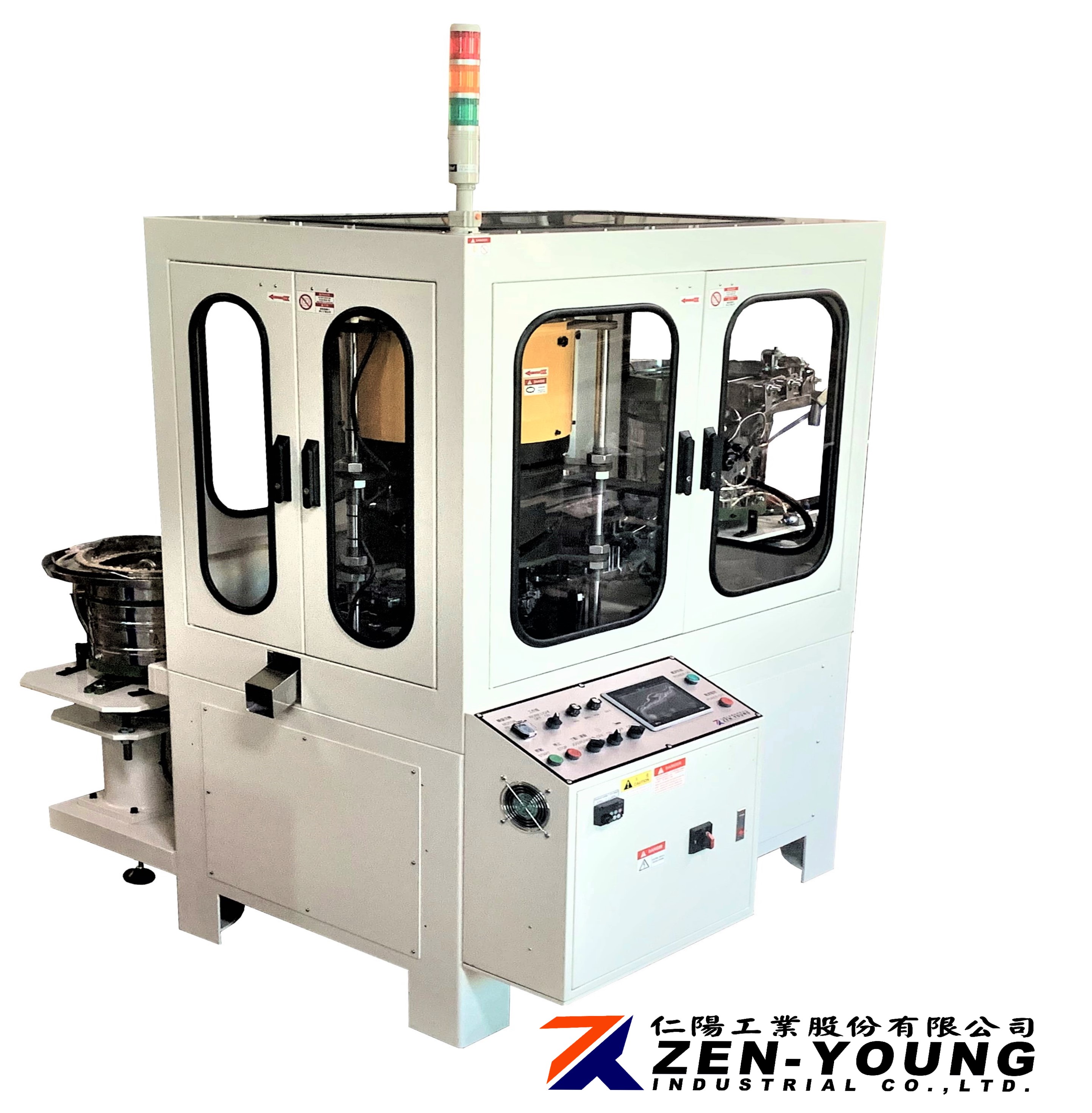

Continuous Assembly / Screw Screwing With Plastic / Rubber Washer Assembly Machine
Screw Screwing With Plastic / Rubber Washer Assembly Machine
Product ID: ZYVC
• Use 12 electric screwdrivers to screw the screws into the washer with high-speed rotation, and the washer will not deform after assembly.
• After assembling, the washer will be close to the bottom of the screw head.
Specifications:
-
Motor power: 1/2 HP.
-
Dimension: 2,000 (L) x 1,700 (W) x 1,906 (H) mm.
-
Control: Programmable logic control of all movements.
-
Inverter to adjust machine speed.
VIDEO - SCREW M3x10 MM + RUBBER WASHER OD:7.5X2.0 MM OUTPUT: 220 PCS/MIN
VIDEO - SCREW M3X12 MM + RUBBER WASHER OD:8X2.0 MM OUTPUT:200 PCS/MIN
VIDEO - SCREW M5X12 MM + PLASTIC WASHER OD:12X1.0 MM OUTPUT:200 PCS/MIN
Features:
-
Use 12 electric screwdrivers to screw the screws into the washer with high-speed rotation, and the washer will not deform after assembly.
-
Continuous assembly mode, fast and stable assembling, operation and troubleshooting easy, simple mechanism can be to create a highly assembling speed.
-
Sorting device for unassembled screw or washer.
- Operating Interface Screen: Through the screen easier to understand the mechanical functionand the error place.
- When the supply of screws or washers is late, the machine will stop automatically. After the feed tracks are full of screw and washer, the machine will be automatic movement.
|
Certificate:
- CE
Order Information:
- Minimum Order: 1台
- Branded Product
